Detection of early damage level of yellow peaches based on reflectance,absorbance and Kubelka-Munk spectral data
CSTR:
Author:
Affiliation:

School of Mechatronics & Vehicle Engineering/National and Local Joint Engineering Research Center of Fruit Intelligent Photoelectric Detection Technology and Equipment, East China Jiaotong University,Nanchang 330013,China

Clc Number:

T255

  • Article
  • |
  • Figures
  • |
  • Metrics
  • |
  • Reference
  • |
  • Related
  • |
  • Cited by
  • | |
  • Comments
    Abstract:

    Yellow peaches are soft and prone to damage,and the different level of damage can directly affect the end use and sale price of yellow peaches. The reflection (R),absorption (A),and Kubelka-Munk spectra (K-M) of yellow peaches were obtained by using hyperspectral techniques and used to detect the early damage level of yellow peaches. Partial least squares discriminant analysis (PLS-DA),extreme gradient boosting (XGBoost) and random forest (RF) models based on three raw spectra and various pretreated spectra were established. The results were compared to select the model with higher correctness. The model with its characteristic wavelength was constructed and compared again. The results showed that RF models based on the three raw spectra and SG pretreated spectra were superior in discriminating,with the overall accuracy rates all above 90.00%. The wavelength screening of the raw spectra and SG pretreated spectra was performed with the competitive adaptive reweighting (CARS) and uninformative variable elimination (UVE) algorithms,and the RF models were established again. The results showed that the A-RAW-CARS-RF model and the K-M-SG-CARS-RF model were improved in discriminating compared with the RF model at full spectrum. Among the RF models established based on the characteristic wavelengths,the A-RAW-CARS-RF model had the best discriminating effect with an overall accuracy of 97.12%. The number of misclassifications for the four subcategories were 0,1,1,and 1. It is indicated that the feasibility of detecting the early damage level of yellow peaches based on absorption spectroscopy (A). It will provide some theoretical basis for detecting fruit bruise with hyperspectral techniques in the future.

    Table 2 RF model prediction results based on the characteristic wavelength

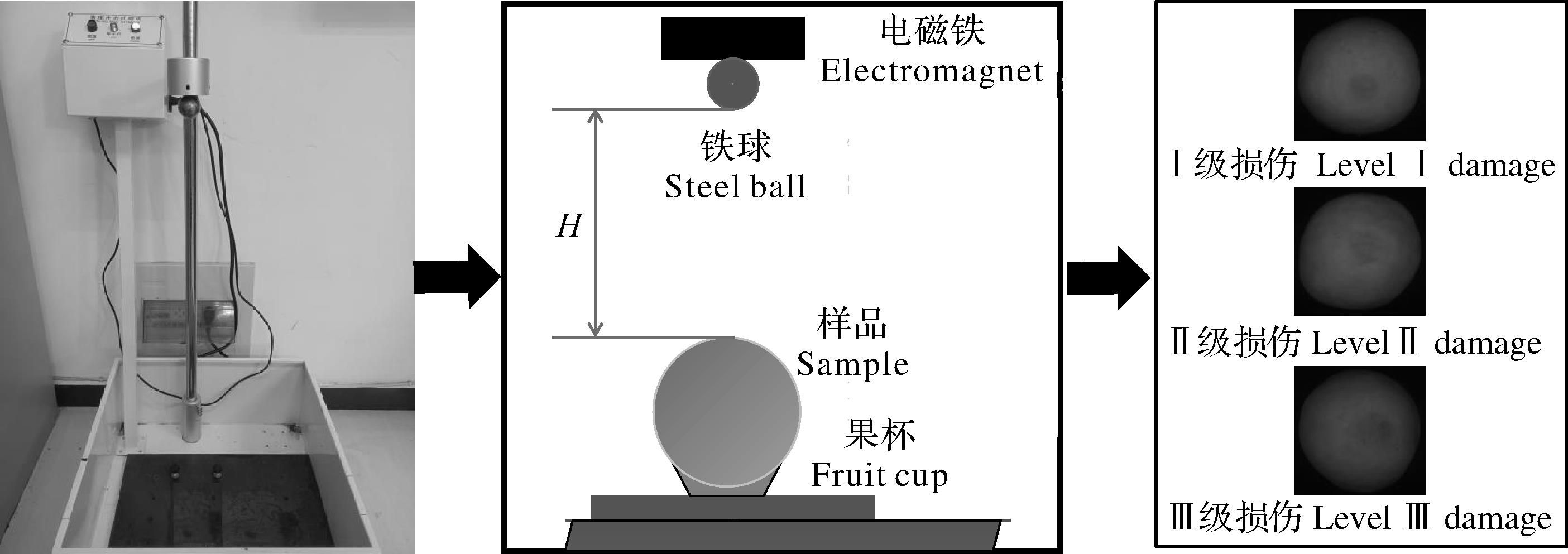

    Fig.1 Falling ball impact tester and bruised sample

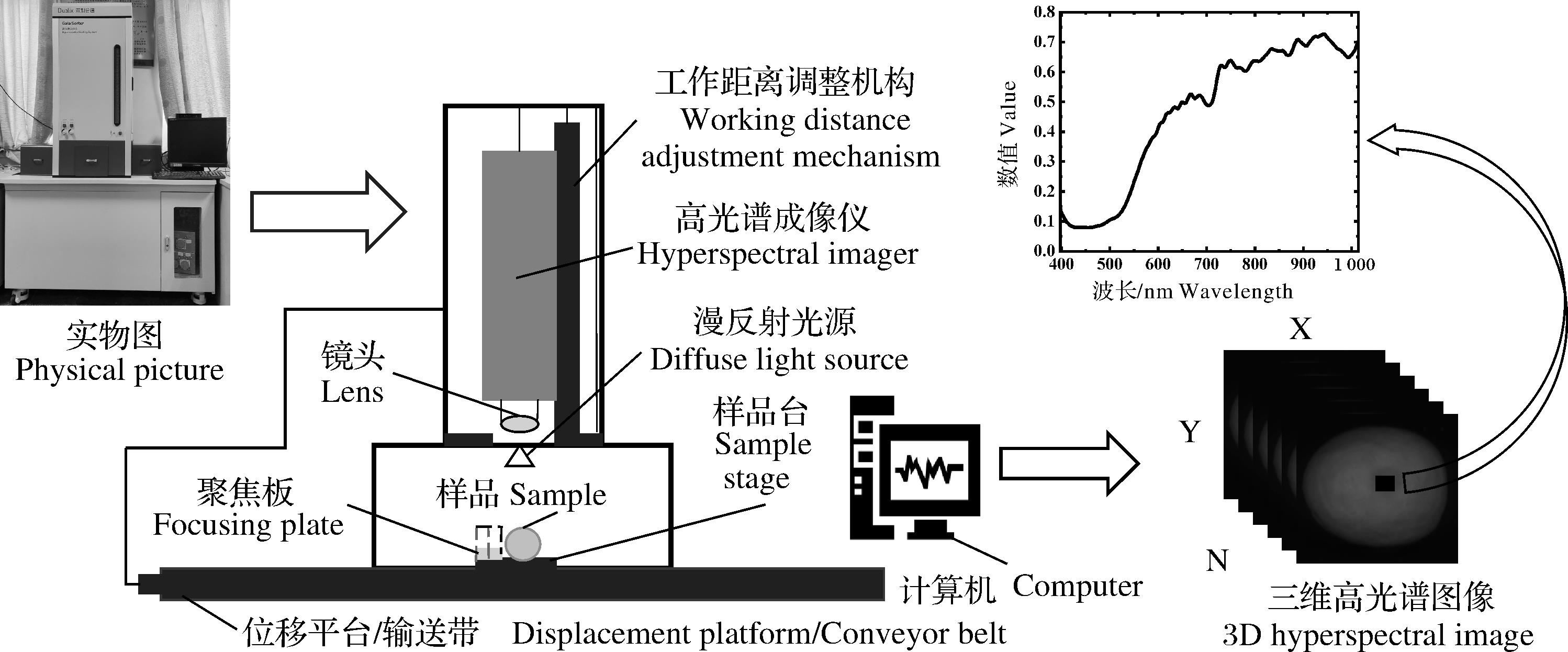

    Fig.2 Schematic diagram of the hyperspectral system and 3D data cube
    Fig.3 Average spectral curve of healthy yellow peach and yellow peach with different damage degrees
    Fig.4 Confusion matrix for the prediction results of different models
    Fig.5 The process of screening the variables of CARS algorithm

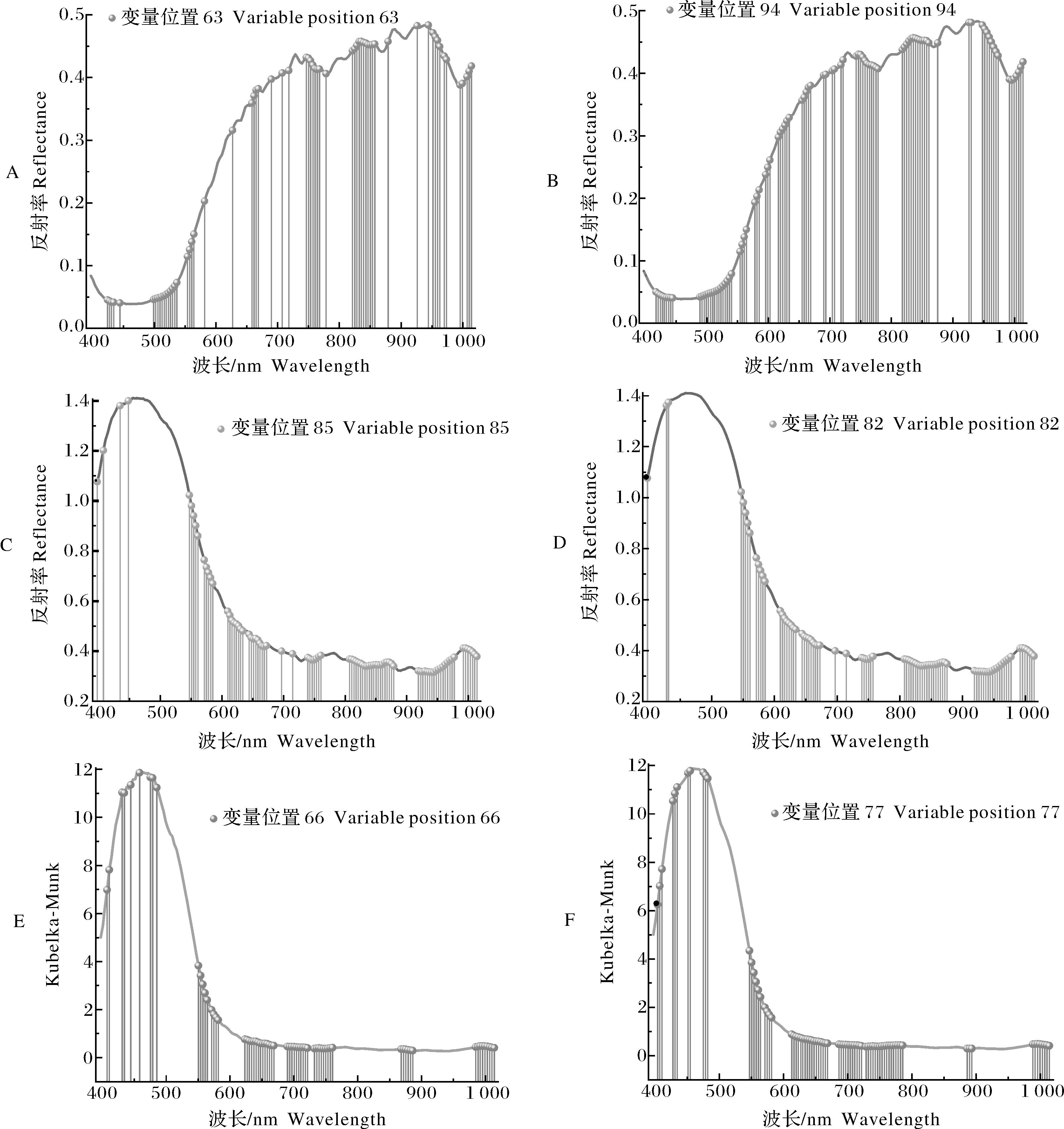

    Fig.6 The results of CARS algorithm to select wavelength

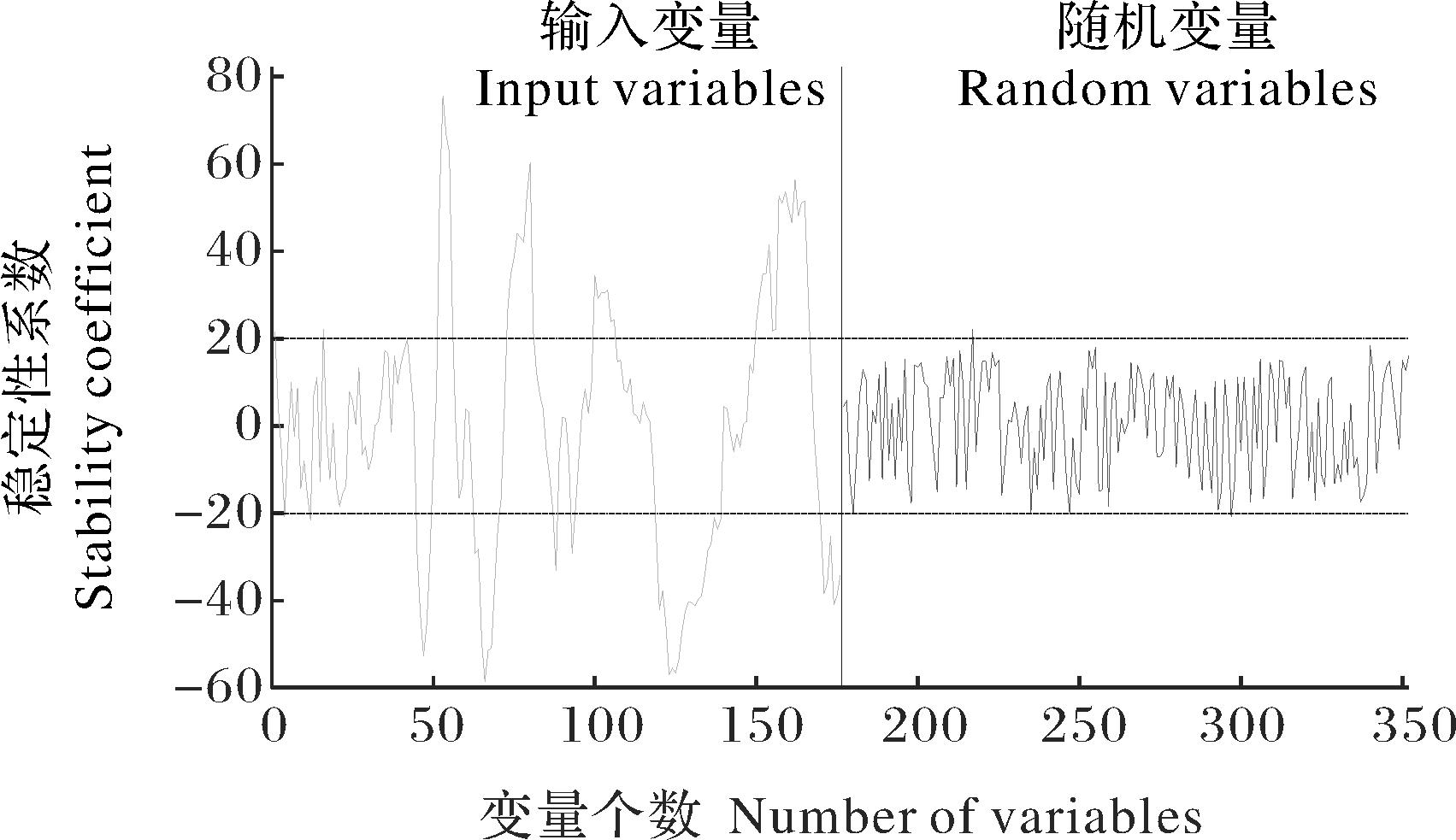

    Fig.7 The process of screening variables of UVE algorithm
    Fig.8 The results of UVE algorithm to select wavelength
    Fig.9 Confusion matrix for different model prediction results
    Table 1 Prediction results of models based on reflection, absorption and K-M spectra and various pretreated spectra
    Reference
    Related
    Cited by
Get Citation

殷海,李斌,刘燕德,张烽,苏成涛,欧阳爱国. Detection of early damage level of yellow peaches based on reflectance,absorbance and Kubelka-Munk spectral data[J]. Jorunal of Huazhong Agricultural University,2023,42(3):220-229.
