扰种侧充槽盘式玉米精量排种器设计与测试
CSTR:
作者:
作者单位:

1.新疆农业大学机电工程学院,乌鲁木齐 830052;2.新疆智能农业装备重点实验室,乌鲁木齐 830052;3.新疆天诚农机具制造有限公司,铁门关 841007

作者简介:

付浩,E-mail:foch71@163.com

通讯作者:

张学军, E-mail:tuec@163.com

中图分类号:

S223.2

基金项目:

新疆维吾尔自治区重大科技专项(2022A02003-3);新疆农机研发制造推广应用一体化项目(YTHSD2022-14)


Design and test of maize precision seeder with seed-disturbance and side-filling slotted disk
Author:
Affiliation:

1.College of Mechanical and Electrical Engineering, Xinjiang Agricultural University, Urumqi 830052, China;2.Xinjiang Key Laboratory of Intelligent Agricultural Equipment, Urumqi 830052, China;3.Tiancheng Agricultural Equipment Manufacturing Co.,Xinjiang,Tiemenguan 841007,China

  • 摘要
  • |
  • 图/表
  • |
  • 访问统计
  • |
  • 参考文献 [21]
  • |
  • 相似文献
  • | | |
  • 文章评论
    摘要:

    为提高玉米排种器的充种性能,设计了一种扰种侧充槽盘式玉米精量排种器。以玉米籽粒尺寸参数为依据,提出了一种扰种侧充式取种结构,在充种的同时实现调姿扰种与导种,有效提升种群活跃度与充种时长,提高充种效率。建立力学与运动学模型对排种器关键结构参数进行设计及取种原理分析,并采用EDEM软件进行仿真分析明确扰种性能,在此基础上获得了影响排种器工作效率的关键因素:取种盘转速、槽孔深度、充种偏角,并以此为因素进行三因素三水平中心组合试验,建立了合格指数、漏播指数、重播指数的回归模型,分析优化得出在取种盘转速为28 r/min、槽孔深度为8.2 mm、充种偏角为67°时,优化模型预测的合格指数为94.32%、漏播指数为1.95%、重播指数为3.73%。田间试验结果显示:合格指数92.97%、漏播指数2.14%、重播指数4.89%,符合优化模型预测结果,扰种侧充槽盘式玉米精量排种器的各项评价指标符合播种农艺要求。

    Abstract:

    This article designed a precision seeder with seed disturbance and side-filling slotted disk type to improve the seed filling performance of maize seeder. A structure of picking up seed with seed disturbance and side filling was proposed based on the size parameters of maize kernels, which can realize the attitude adjustment disturbance and seed guidance during seed filling, and effectively improve the activity of population, and the duration and efficiency of seed filling. The key structural parameters of the seeder were designed and the principle of seed picking was analyzed by establishing the mechanical and kinematics models. The simulation analysis was conducted with EDEM software to clarify the disturbance performance. On this basis, the key factors affecting the efficiency of the seeder including the speed of the seed tray, the depth of the slot hole, and the deviation angle of seed filling were obtained. A central combination test with three factors and three levels was conducted based on these factors. Data analysis was conducted on the results of test, and regression models of the pass index, miss seeding index, and reseeding index were established. The results of analysis and optimization showed that the pass index, miss seeding index, the qualified index, and reseeding index predicted by the optimized model was 94.32%,1.95%,and 3.73% when the speed of the seed tray, the depth of the slot, and the angle of seed filling was 28 r/min, 8.2 mm, and 67°. The qualification index, the missed sowing index, and the replanting index verified through field test was 92.97%,2.14%,and 4.89%, which was in line with the predicted results of the model optimized. It is indicated that the evaluation indicators of the maize precision seeder with seed-disturbance and side-filling slotted disk meet the agronomic requirements of sowing.

    表 1 玉米籽粒尺寸测量结果Table 1 Measurement results of maize seed size
    图1 扰种侧充槽盘式玉米精量排种器结构图Fig.1 Structure diagram of the seed disturbing side filling slotted disc type corn precision seed metering device
    图2 排种器工作原理图Fig.2 Principle of operation of seed metering device
    图3 玉米籽粒外形参数Fig.3 Corn kernel shape parameters

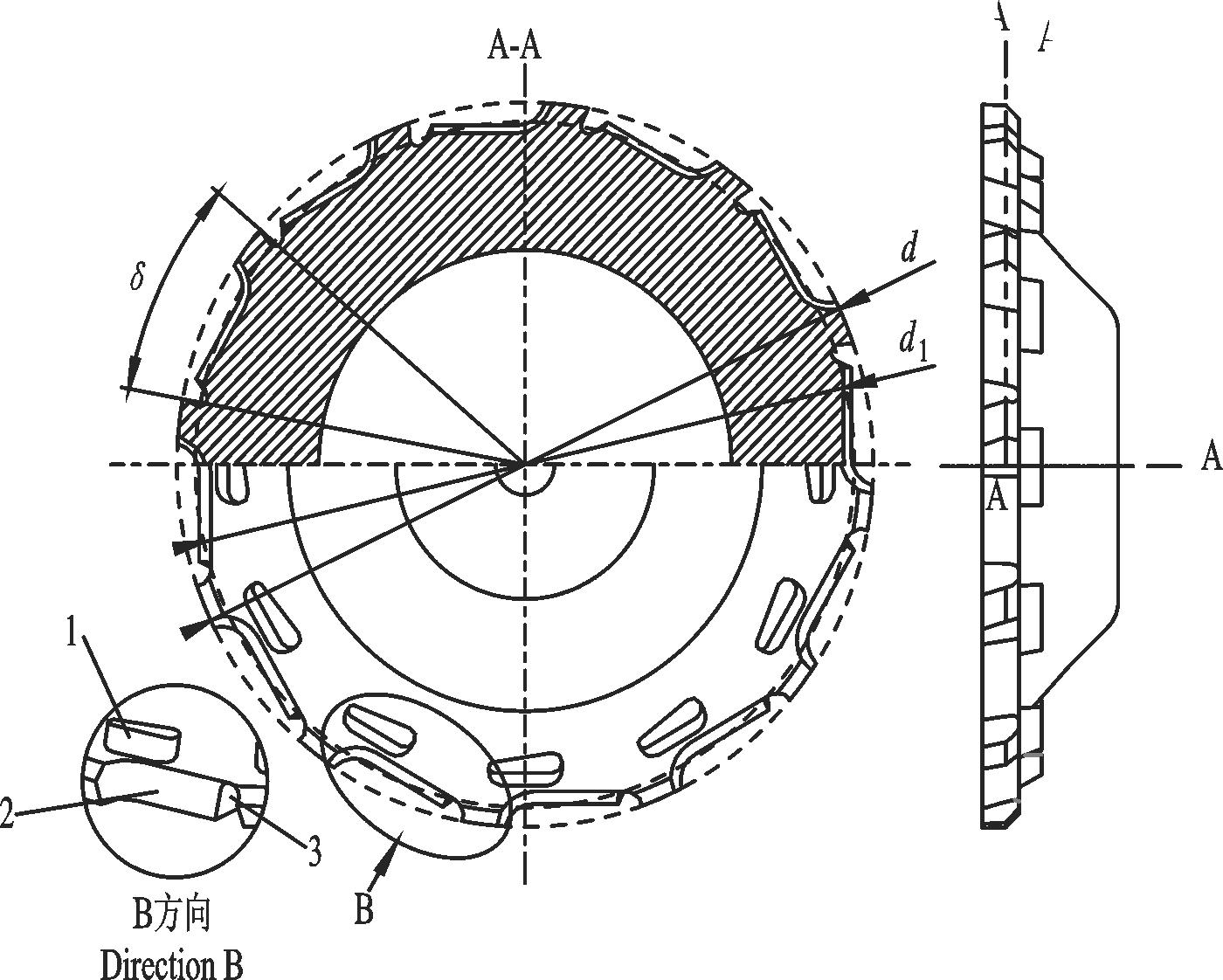

    图4 取种盘结构示意图Fig.4 Schematic diagram of the structure of seed extraction tray
    图5 取种槽结构示意图Fig.5 Schematic diagram of the structure of the seed extraction tank
    图6 取种槽内种子姿态Fig.6 Posture of seeds in the pick-up tank
    图7 籽粒运动示意图Fig.7 Schematic diagram of seed movement
    图8 取种槽籽粒受力分析图Fig.8 Analysis of the force on seeds in the seed extraction tank
    图9 扰种过程及受力分析图Fig.9 Disturbance process and force analysis diagram
    图10 仿真模型建立Fig.10 Simulation model building
    图11 仿真分析结果Fig.11 Simulation analysis result
    图12 导种原理分析Fig.12 Principle analysis of seed guide
    图13 试验装置Fig.13 Test setup
    图14 Fig.14 Response surface diagram
    图15 田间试验Fig.15 Field test
    表 4 回归方程方差分析Table 4 Analysis of variance of regression equations
    表 2 试验因素水平编码Table 2 Experimental factors and level codes
    表 3 试验方案及结果Table 3 Experimental protocol and results
    参考文献
    [1] 都鑫,刘彩玲,姜萌,等.自扰动内充型孔轮式玉米精量排种器设计与试验[J].农业工程学报,2019,35(13):23-34.DU X,LIU C L,JIANG M,et al.Design and experiment of self-disturbance inner-filling cell wheel maize precision seed-metering device[J].Transactions of the CSAE,2019,35(13):23-34 (in Chinese with English abstract).
    [2] 李复辉,杜瑞成,刁培松,等.舵轮式玉米免耕精量施肥播种机设计与试验[J].农业机械学报,2013,44(S1):33-38.LI F H,DU R C,DIAO P S,et al.Design and experiment of helm-shaped No-tillage precision fertilization planter for corn[J].Transactions of the CSAM,2013,44(S1):33-38 (in Chinese with English abstract).
    [3] 廖宜涛,李成良,廖庆喜,等.播种机导种技术与装置研究进展分析[J].农业机械学报,2020,51(12):1-14.LIAO Y T,LI C L,LIAO Q X,et al.Research progress of seed guiding technology and device of planter[J].Transactions of the CSAM,2020,51(12):1-14 (in Chinese with English abstract).
    [4] 王金武,王梓名,徐常塑,等.坡耕地鸭嘴式玉米排种器间歇同步充补装置设计与试验[J].农业机械学报,2022,53(5):57-66.WANG J W,WANG Z M,XU C S,et al.Design and experiment of intermittent synchronous seeding and reseeding device of duck-billed corn seed metering machine in sloping farmland[J].Transactions of the CSAM,2022,53(5):57-66 (in Chinese with English abstract).
    [5] 李玉环,杨丽,张东兴,等.气吸式玉米精量排种器双侧清种装置设计与试验[J].农业机械学报,2021,52(7):29-39.LI Y H,YANG L,ZHANG D X,et al.Design and test of double-side cleaning mechanism for air-suction maize seed-metering device[J].Transactions of the CSAM,2021,52(7):29-39 (in Chinese with English abstract).
    [6] 李娟娟,张和平,毕新胜,等.转轴型孔式精量排种器充种性能仿真分析与试验[J].农业工程学报,2020,36(5):38-49.LI J J,ZHANG H P,BI X S,et al.Simulation analysis and test on the filling performance of rotary type-hole precision seed-metering device for cotton[J].Transactions of the CSAE,2020,36(5):38-49 (in Chinese with English abstract).
    [7] 李洪昌,高芳,赵湛,等.国内外精密排种器研究现状与发展趋势[J].中国农机化学报,2014,35(2):12-16,56.LI H C,GAO F,ZHAO Z,et al.Domestic and overseas research status and development trend of precision seed-metering device[J].Journal of Chinese agricultural machinery,2014,35(2):12-16,56 (in Chinese with English abstract).
    [8] 韩丹丹,何彬,周毅,等.气吸式密植精量排种器的设计与试验[J].华中农业大学学报,2023,42(1):237-247.HAN D D,HE B,ZHOU Y,et al.Design and experiment of air suction type dense planting precision seed metering device[J].Journal of Huazhong Agricultural University,2023,42(1):237-247 (in Chinese with English abstract).
    [9] 李兆东,何顺,钟继宇,等.油菜扰动气力盘式穴播排种器参数优化与试验[J].农业工程学报,2021,37(17):1-11.LI Z D,HE S,ZHONG J Y,et al.Parameter optimization and experiment of the disturbance pneumatic plate hole metering device for rapeseed[J].Transactions of the CSAE,2021,37(17):1-11 (in Chinese with English abstract).
    [10] 张学军,程金鹏,史增录,等.摆动夹取式玉米精量排种器取种性能仿真与试验[J/OL].农业机械学报:1-14[2023-03-08].https://kns-cnki-net.webvpn.xjau.edu.cn/kcms/detail/11.1964.s.20230117.1710.012.html.ZHANG X J, CHENG J P, SHI Z L, et al. Simulation and experiment of seed taking performance of swing clamp type maize precision seed-metering device[J].Transactions of the CSAM: 1-14[2023-03-11].https://kns-cnki-net.webvpn.xjau.edu.cn/kcms/detail/11.1964.s.20230117.1710.012.html (in Chinese with English abstract).
    [11] 伍皖闽,陈学庚,王士国,等.组合型孔轮式玉米精量穴播器设计与试验[J].农业机械学报,2022,53(3):60-70.WU W M,CHEN X G,WANG S G,et al.Design and experiment of combined-hole maize precision dibbler[J].Transactions of the CSAM,2022,53(3):60-70 (in Chinese with English abstract).
    [12] 李成华,夏建满,何波.倾斜圆盘勺式精密排种器投种过程分析[J].农业机械学报,2005,36(3):48-50.LI C H,XIA J M,HE B.Analysis of seed throwing procedure by declined scope metering device[J].Transactions of the CSAM,2005,36(3):48-50 (in Chinese with English abstract).
    [13] SINGH R C,SINGH G,SARASWAT D C.Optimisation of design and operational parameters of a pneumatic seed metering device for planting cottonseeds[J].Biosystems engineering,2005,92(4):429-438.
    [14] 王金武,唐汉,周文琪,等.指夹式精量玉米排种器改进设计与试验[J].农业机械学报,2015,46(9):68-76.WANG J W,TANG H,ZHOU W Q,et al.Improved design and experiment on pickup finger precision seed metering device[J].Transactions of the CSAM,2015,46(9):68-76 (in Chinese with English abstract).
    [15] 王业成,邱立春,张文娇,等.摩擦型立式圆盘精密排种器的设计与试验[J].农业工程学报,2012,28(1):22-26.WANG Y C,QIU L C,ZHANG W J,et al.Design and experiment of friction vertical plate precision seed-metering device[J].Transactions of the CSAE,2012,28(1):22-26 (in Chinese with English abstract).
    [16] 刘艳芬,林静,李宝筏,等.玉米播种机水平圆盘排种器型孔设计与试验[J].农业工程学报,2017,33(8):37-46.LIU Y F,LIN J,LI B F,et al.Design and experiment of horizontal disc seed metering device for maize seeder[J].Transactions of the CSAE,2017,33(8):37-46 (in Chinese with English abstract).
    [17] 廖庆喜,高焕文,臧英.玉米水平圆盘精密排种器型孔的研究[J].农业工程学报,2003,19(2):109-113.LIAO Q X,GAO H W,ZANG Y.Experimental study on the cell of the horizontal plate precision meter for corn seed[J].Transactions of the CSAE,2003,19(2):109-113 (in Chinese with English abstract).
    [18] 陈志.农业机械设计手册[M].北京:中国农业科学技术出版社,2007.CHEN Z.Agricultural machinery design manual[M].Beijing: China Agricultural Science and Technology Press,2007(in Chinese with English abstract).
    [19] 颜丙新,张东兴,崔涛,等.排种盘和负压腔室同步旋转气吸式玉米精量排种器设计[J].农业工程学报,2017,33(23):15-23.YAN B X,ZHANG D X,CUI T,et al.Design of pneumatic maize precision seed-metering device with synchronous rotating seed plate and vacuum chamber[J].Transactions of the CSAE,2017,33(23):15-23 (in Chinese with English abstract).
    [20] 孙其诚,王光谦.静态堆积颗粒中的力链分布[J].物理学报,2008,57(8):4667-4674.SUN Q C,WANG G Q.Force distribution in static granular matter in two dimensions[J].Acta physica sinica,2008,57(8):4667-4674 (in Chinese with English abstract).
    [21] 张青松,余琦,王磊,等.油菜勺式精量穴播排种器设计与试验[J].农业机械学报,2020,51(6):47-54,64.ZHANG Q S,YU Q,WANG L,et al.Design and experiment of scoop-type precision hole metering device for rapeseed[J].Transactions of the CSAM,2020,51(6):47-54,64 (in Chinese with English abstract).
